NOAQ® BOXWALL™ Mobile Flood Barrier System

A flood barrier is a removable wall fitted across a door, gate, shutter or ramp to stop flood water entering. It is also called a flood gate, flood shield, flood board or water stop board. Frontier makes two types: the H-Frame aluminium flood barrier, made to an exact opening, and the NOAQ Boxwall flood diversion barrier for open areas.

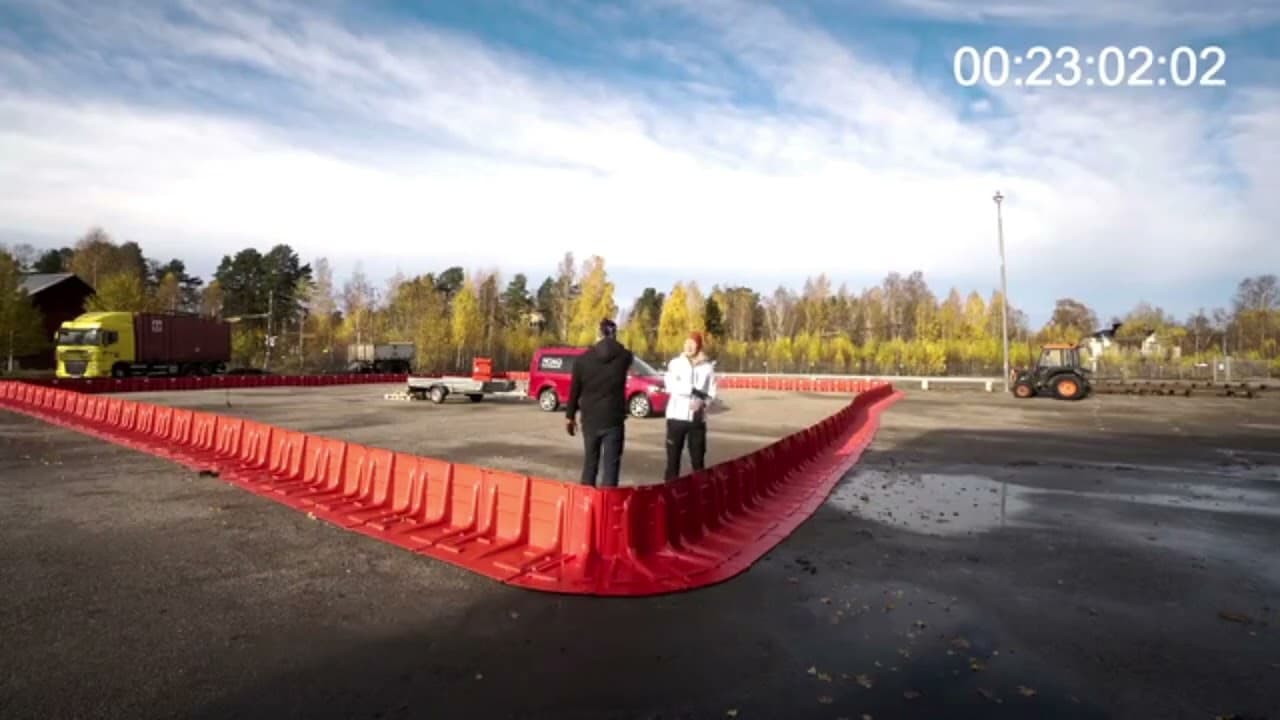

Two people can deploy up to 200 metres of NOAQ Boxwall BW52 barrier in under an hour, no tools, no heavy equipment, just an insert-and-lock connection system between modular units.

Yes. NOAQ Boxwall supports a minimum curve radius of 1 metre in both directions, with dedicated 30° corner elements for both inward and outward turns, allowing continuous protection across irregular street layouts, entrances, and corners.

NOAQ Boxwall is a light, free-standing flood diversion barrier made of snap-together plastic units. Place it on firm, even ground and the weight of the flood water presses it down, so it holds itself with no bolts, digging or tools. It guides flood water away from what you want to protect. The standard model holds about 50 cm.

Standard NOAQ Boxwall flood diversion holds water up to about 50 cm (a little over 1.5 feet) on firm, even ground such as asphalt, concrete or paving. It forms curves with a 1 m minimum radius and corners with 30 degree elements. A little seepage is normal. It is not for rough ground. For floods deeper than 50 cm, choose the H-Frame.

No barrier can promise a 100% dry property. A flood barrier stops water coming through the opening it covers, and some seepage can happen. Rain inside your compound and water rising through drains or floors need a small pump and drain valves. Frontier's barriers are hydrostatic pressure tested, and we check every water route on the site visit.

Frontier's H-Frame barrier is built for water pressure and is hydrostatic pressure tested; at metro stations it also stops waves pushed by passing traffic. Very fast water and heavy debris such as logs add load, so we ask about water speed and debris on your road and set the design from that. NOAQ Boxwall flood diversion is for shallow water up to about 50 cm, and can go up in flowing water, but is not for deep or violent floods.

Choose Frontier's H-Frame aluminium flood barrier for a door, gate, shutter, basement ramp or lift lobby: it is made to your opening and holds 40 cm to 2.2 m. Choose NOAQ Boxwall flood diversion for an open road, a large compound or an emergency, or to steer moving water away: it needs no fixing and goes up fast, but holds about 50 cm. Deeper than 50 cm: H-Frame. Not sure? Send a photo.

To divert flood water away from a road, colony lane or compound, build a NOAQ Boxwall flood diversion wall along the path you want the water to take, toward a drain or open ground. It can go up even while water is flowing, and two people can set up to 200 m in an hour. Use firm, even ground, with lower ground behind the wall.

NOAQ Boxwall flood diversion can stop or divert shallow water, up to about 50 cm, at an underpass entrance, or steer runoff away from it. It does not remove water already collected inside; deeper pooling needs pumps and drainage by the authority. Send us the entrance width and the usual water depth.

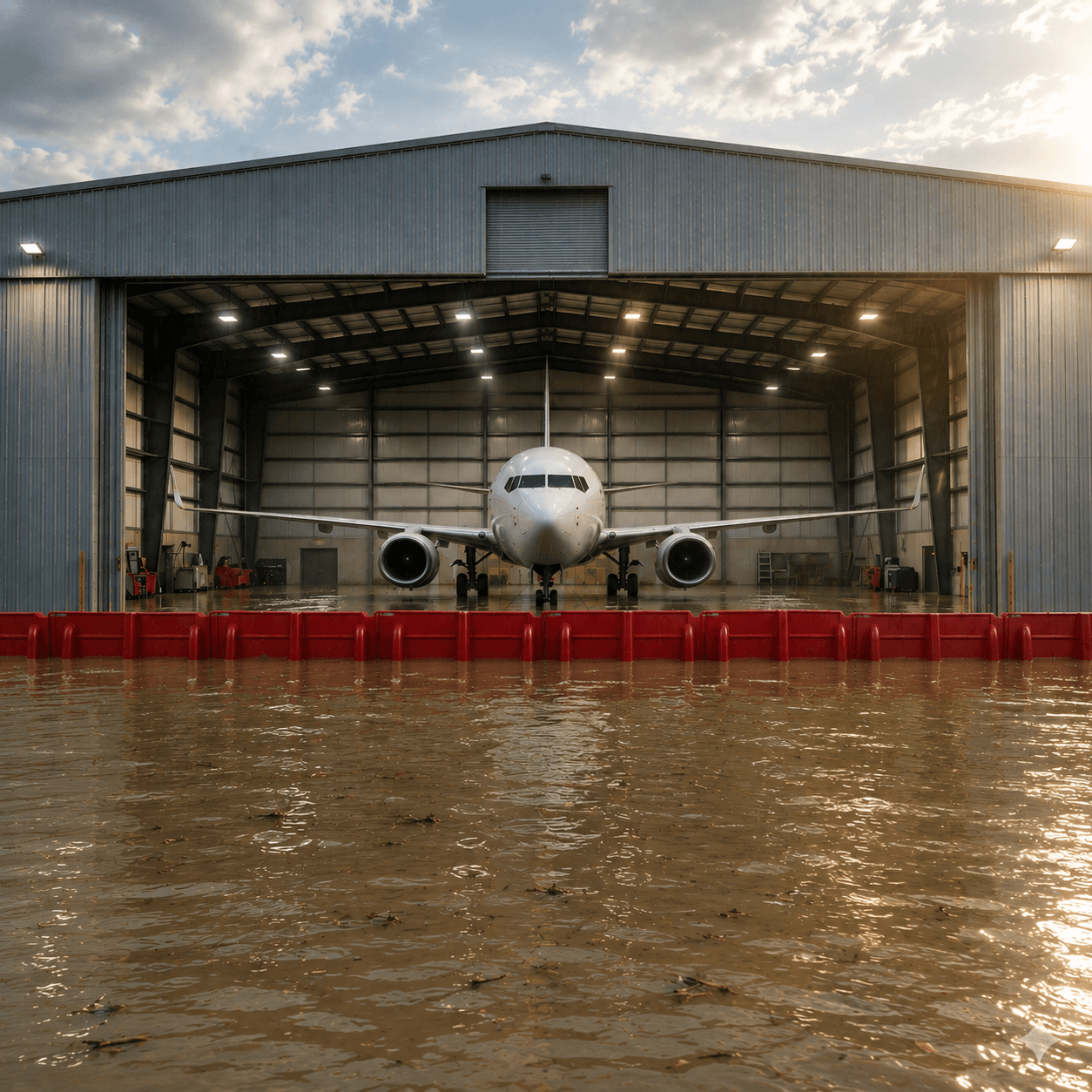

NOAQ Boxwall flood diversion units snap together end to end to form a long wall around hangar doors, an apron or a large yard, diverting shallow water (up to about 50 cm) away from aircraft and workshop equipment. One person carries a unit; two people set up to 200 m in an hour. For deeper floods or fixed doors, we add Frontier's H-Frame aluminium flood barrier.

Yes. Fire brigades abroad use Boxwall (the Kufstein fire brigade in Austria steers flood water along streets with it), and Frontier ran a NOAQ Boxwall field demonstration with DLF Fire Services in Gurugram. It is light, needs no tools and can go up in flowing water. We arrange demonstrations for fire services, SDRF, NDRF and municipal teams.

Yes, wherever you need a quick temporary wall on firm, even ground with shallow water up to about 50 cm: poultry or dairy farm boundaries, market yards, construction excavations, fair grounds and wedding car parks. Units stack compactly and can be rinsed and reused. If the ground is rough or soft, tell us and we check it first.

Yes. Frontier's H-Frame aluminium flood barrier protects entrances, emergency doors, escalator areas and lift lobbies across Delhi Metro, Mumbai Metro and Chennai Metro. NOAQ Boxwall flood diversion suits open airfields, aprons and hangar doors, for shallow water up to about 50 cm.

H-Frame suits: Metro station entrance; Metro emergency exit; Metro escalator or lift lobby; Metro depot; Railway station entrance; Railway signal or substation room; Airport terminal entrance.

NOAQ Boxwall flood diversion suits: Airfield or apron; Aircraft hangar; Helipad or heliport hangar.

Either product, depending on the site: Bus depot or terminal; Airport cargo terminal.

Needs an engineer's site study first: Metro ventilation shaft; Railway underpass; Seaport warehouse or yard; Ferry terminal or jetty; Underground utility vaults at airports and stations; Coastal building or port facility needing surge protection.

Yes. Fixed openings such as toll booths, control rooms and car park entrances take Frontier's H-Frame aluminium flood barrier. Open roads, yards and parking lots take NOAQ Boxwall flood diversion, which can go up even while water is flowing and holds about 50 cm.

H-Frame suits: Toll plaza booth and control room; Multi-level car park; EV charging station.

NOAQ Boxwall flood diversion suits: Truck or bus parking yard; Surface parking lot.

Needs an engineer's site study first: Tunnel entrance; Road underpass; Pedestrian subway; Highway or expressway waterlogging spot; Flyover or bridge approach road; Railway level crossing approach.

Yes. Fire brigades abroad use NOAQ Boxwall to steer flood water along streets, and Frontier ran a NOAQ Boxwall field demonstration with DLF Fire Services in Gurugram. Buildings such as police lines, control rooms and depots take Frontier's H-Frame aluminium flood barrier at their doors.

H-Frame suits: Police lines or barracks; Disaster control room or emergency operations centre; Municipal ward office; Public toilet or community centre; Ration shop or PDS godown; Cantonment building; Police training academy; Defence canteen or depot.

NOAQ Boxwall flood diversion suits: Relief camp or shelter; Road waterlogging hotspot.

Either product, depending on the site: Fire station; Army or air force camp; SDRF or NDRF base; Fire brigade headquarters.

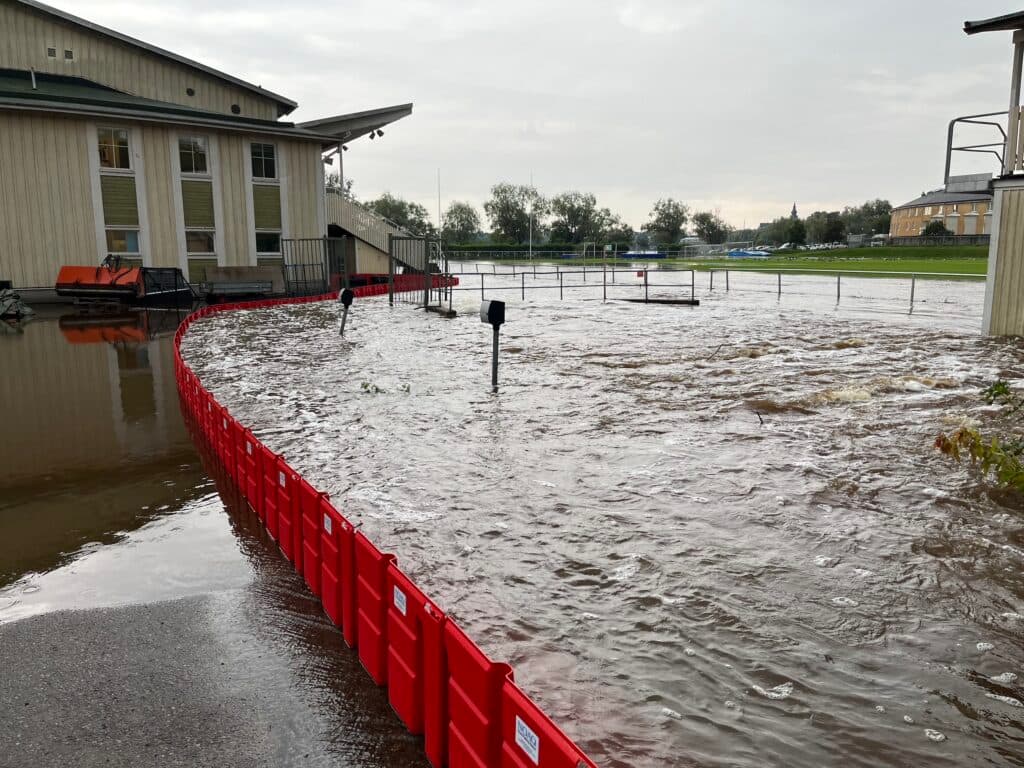

Needs an engineer's site study first: Nala or drain overflow point; Lake or tank overflow; Canal breach emergency; River embankment weak point (temporary); Culvert or causeway approach; Naval base shore facility; Border or forward post.

Yes. Buildings such as pump rooms, godowns and village schools take Frontier's H-Frame aluminium flood barrier at their doors. Open farm boundaries and mandi yards suit NOAQ Boxwall flood diversion, on firm, even ground with shallow water up to about 50 cm.

H-Frame suits: Tubewell or pump room; Cold storage for fruits and vegetables; Grain godown or FCI warehouse; FPO or farmer cooperative warehouse; Fish or seafood processing unit; Village health centre; Panchayat bhawan; Village school; Seed or fertiliser store; Rural homestay.

NOAQ Boxwall flood diversion suits: Dairy farm or cattle shed; APMC mandi or market yard; Greenhouse or nursery.

Either product, depending on the site: Poultry farm.

Yes, wherever you need a quick temporary wall on firm, even ground with shallow water up to about 50 cm. NOAQ Boxwall flood diversion needs no tools or digging, two people can set up to 200 m in an hour, and the units stack compactly and can be rinsed and reused.

NOAQ Boxwall flood diversion suits: Construction site basement excavation; Highway or bridge construction site; Film set or shooting location; Exhibition or trade fair ground; Religious fair or festival ground; Temporary market or mela; Open-air event or concert venue; Relief distribution point; Labour camp or construction workers' colony.

Either product, depending on the site: Sports stadium or ground.

Needs an engineer's site study first: Metro or tunnel construction shaft.

For the H-Frame, the floor channel needs a level base, so floor levelling is part of the site work; we inspect tiles or marble on the visit. NOAQ Boxwall flood diversion works best on firm, even ground such as asphalt, concrete or paving, and can also be used on grass. It is not for rough, broken or soft ground. Send a photo of the ground.

There is no fixed price list because every opening is different. Flood barrier cost depends on opening size, height, product (H-Frame or NOAQ Boxwall) and site work. For a quote, send: 1) a photo of the entrance, 2) width and height, 3) highest flood mark, 4) floor type, 5) whether vehicles drive through. Our technical team reviews every data package within 24 business hours.

Order well before the monsoon, because each barrier is made to your measurements and the clock starts once we have your width, height and floor details. Watch field videos of flood protection at Belvedere Park, Gurugram and a NOAQ Boxwall demonstration with DLF Fire Services on our homepage. Every barrier is tested before handover.

Send your city and opening details through the quote form on our Contact page. Frontier's H-Frame barrier has been installed in New Delhi, Mumbai, Kolkata, Gurugram, Chennai, Hosur, Mundra, Rudrapur/Pantnagar, Ambala, Bawal, Bhopal and Rajpura. Each barrier is made to measure, so we confirm supply and installation for your city after reviewing your details.
