PRODUCTS / MODULAR CONTAINMENT SYSTEMS / ACQUASTOP CLASSIC®
Acquastop Classic® Modular Flood Barrier System
The Acquastop Classic® configuration is the global benchmark for removable modular flood barriers. Engineered with high-strength marine-grade alloys and an integrated over-center clamping mechanism, it delivers absolute sealing integrity without requiring permanent floor tracks or structural changes to channels.
Clamping Architecture
The over-center clamping lever generates high compression force using minimal physical effort, instantly locking the barrier profile against side pillars.
Advanced Extrusion Core
Internal structural rib reinforcement prevents bending under intense water loads, keeping the unit lightweight for fast deployment.
High-Elasticity Sealing System
Continuous triple-fin EPDM seals deform perfectly against wall surfaces, closing off leakage paths under dynamic hydraulic conditions.
HOW IT WORKS
Engineered for wide, high-pressure openings
Clamping Architecture
The over-center clamping lever generates high compression force using minimal physical effort, instantly locking the barrier profile against side pillars.
Advanced Extrusion Core
Internal structural rib reinforcement prevents bending under intense water loads, keeping the unit lightweight for fast deployment.
High-Elasticity Sealing System
Continuous triple-fin EPDM seals deform perfectly against wall surfaces, closing off leakage paths under dynamic hydraulic conditions.
FIELD DEPLOYMENT IMAGERY
Reference installations
Verified installations and engineering demonstrations for Aquastop Classic®.

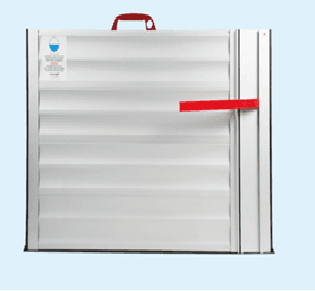

System overview

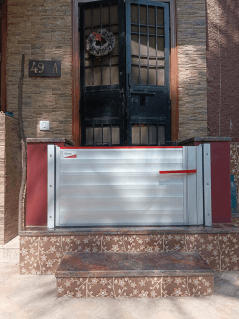

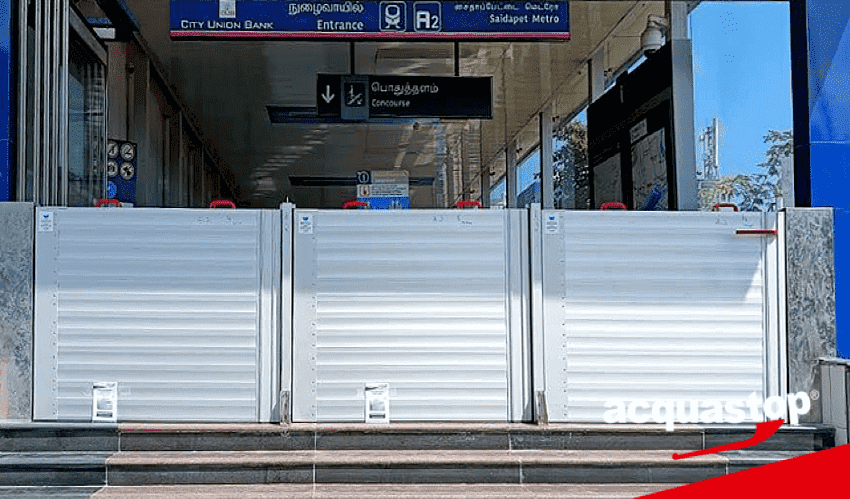

Field deployment
Field deployment
Field deployment
ENGINEERING SPECIFICATIONS
Technical Details
Headline figures only — full engineering data available as a downloadable spec sheet.
| Parameter | Engineering detail | Certification |
|---|---|---|
| Structural Alloy Profile | Aluminium 6060-T6 Marine Grade | EN 755-2 Standard Validation |
| Hydrostatic Pressure Limit | Up to 35 kN/m² Continuous Load | Bureau Veritas Compliance Proof |
| Elastomeric Seal System | Co-extruded Triple-Fin Vulcanized EPDM | ISO 3601 Sealing Test Run |
| Deployment Velocity Metric | ~20 Seconds Per Linear Meter | On-Site Testing Benchmarks |
| Floor Track Requirement | Zero Floor Disruption - Flat Compression Sealing | Non-Invasive Structural Audit |
Ready to see it deployed at your site?
Get a specification brief matched to your clear-width and pressure requirements.
